Carbonated soft drink

  1. TURNKEY PLANT product: CSD, container: PET, production: 24000 BOTTLES PER HOUR, formats: 1500 ml


TURNKEY PLANT product: CSD, container: PET, production: 24000 BOTTLES PER HOUR, formats: 1500 ml

Product type:CARBONATED SOF DRINKS AND WATER
Container:PET
Production capacity:24.000 bottles per hour on 1,5 lt
Bottle formats:1,5 lt
Bottle design:Pet_Bottle 1500 ml
Closure typePlastic caps diameter 30 mm
Packaging typeCarton tray and shrink wrapped film
Pallet 1200 x 1000 mm
Labels typeWrap around label
Cluster3x2
 Packaging machineries and technologies
PositionMachineryModel
001Air compressor40 Bars air compressor for
blow moulder machine
002Blow moulderRotating blow moulder 14 cavities
003Preform feederAutomatic pre form feeder complete
of hopper
004Air conveyorsFilling & Packaging air conveyors
005Conveyors lubrication systemAutomatic lubrication system for all
line conveyors
006Filler monoblock in protected areaF&P M. filler UNICA
50 rinsing grippers
60 filling valves
12 capping heads
complete of automatic cap feeder
006.1Sanitizing solution machineElectrolysis system for the preparation of the
sanitizing solution of sodium hypochlorite
006.2CIPClean in place system filler sanitizing with
hypochlorite solution
007LabelerWrap around label from reel hot glue
labeler with automatic reel change
008Coding systemHigh speed laser coder for PET bottles
009Full bottle conveyorsFilling & Packaging full bottles conveyors
010Shrink wrapperDouble inlet shrink wrapping machine
011Pack conveyorsFilling & Packaging packs conveyors
012Handle applicatorApplicator of adhesive handles carton
reinforced on pack tops
013Palletizing systemF&P Machinery Palletizing island composed of:
Palletizer
Stretch-wrapper
Conveyors

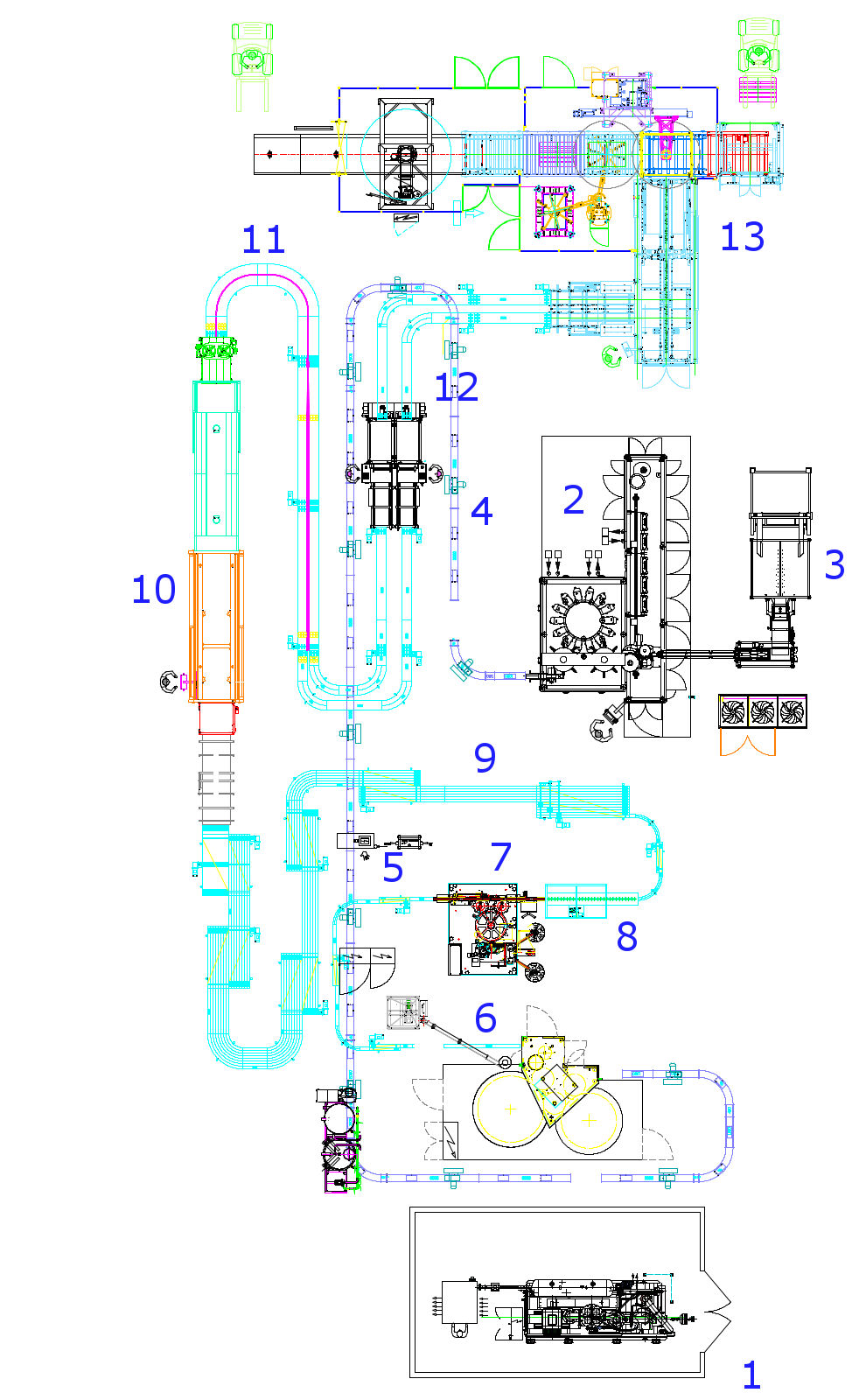

CLICK TO ENLARGECSD24000PET
